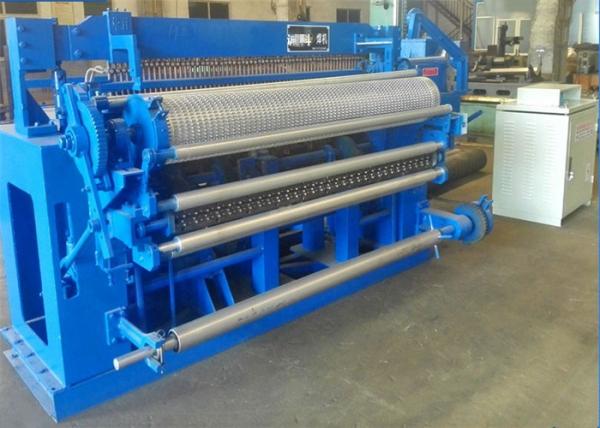

Automatic Small Diameter Roll Mesh Welding Machine For Fencing
description
Welded wire mesh, also known as exterior wall thermal insulation
wire galvanized barbed wire galvanized welded wire mesh wire mesh
welding net touch welding net rise buildings exterior wall thermal
insulation net decoration net barbed wire, square wire mesh, mesh,
anti-cracking mesh, welded wire mesh, stainless steel is made of
high quality stainless steel wire line of welding and become, more
acid and alkali resistance welding firmly and beautiful
characteristics such as widely used
Features
1. This machine is fully automatic to feed wires, weld mesh, cut
edge and roll mesh.
2. The raw material is applicable for low-carbon steel wire,
galvanizing wire and stainless steel wire.
3. It has advantages of reasonable design, low noise, stable
working, easier operation etc.
4. The mesh size is precise and can be set according to customers’
requirements.
5. It adopts sealed &water cooling welding transformers, the
scoria can not easily goes in.
Specification
| MODEL | Mesh width | Min mesh | Wire diameter(mm) | Welding speed(mm) | Mesh length(mm) | other |
| CK-RM-1X1/2-A | 1m | 1/2*1/2 | 0.45-0.85 | 90-120 | 130 | 1/2”X1” 1”X1/2” 1”X1” 2”X2” |
| CK-RM-4X1/2-A | 4ft |
| CK-RM-1X1/2-C | 1m | 1/2*1/2 | 0.6-1.3 | 90-120 | 110 | 1/2”X1” 1”X1/2” 1”X1” 2”X2” |
| CK-RM-4X1/2-C | 4ft |
| CK-RM-5X1/2-C | 5ft |
| CK-RM-1X1/2-C | 1m | 1/2*1/2 | 0.8-1.6 | 80-90 | 100 | 1/2”X1” 1”X1/2” 1”X1” 2”X2” |
| CK-RM-4X1/2-C | 4ft |
| CK-RM-5X1/2-C | 5ft |
| CK-RM-6X1/2-C | 6ft |
| CK-RM-1X1-A | 1m | 1*1 | 0.45-0.85 | 90-120 | 130 | 1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-A | 4ft |
| CK-RM-1X1-B | 1m | 1*1 | 0.6-1.3 | 90-100 | 110 | 1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-B | 4ft |
| CK-RM-5X1-B | 5ft |
| CK-RM-1X1-C | 1m | 1*1 | 0.8-1.6 | 90-100 | 100 | 1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-C | 4ft |
| CK-RM-5X1-C | 5ft |
| CK-RM-6X1-C | 6ft |
| CK-RM-1X1-D | 1m | 1*1 | 1.4-2.6 | 80-90 | 80 | 1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-D | 4ft |
| CK-RM-5X1-D | 5ft |
| CK-RM-6X1-D | 6ft |
| CK-RM-2X1-D | 2m |
| CK-RM-7X1-D | 7ft |
| Special customized,: user can specify any width and mesh and wire
diameter |
Usage
1. Welded wire mesh is used in industry and agriculture building
2.Transportation and mining for all such purposes as poultry houses
3. Egg baskets,fishing, poultry
4.Runway enclosures
5. Draining rack
6. Fruit drying screen
7. Fence
